Product details

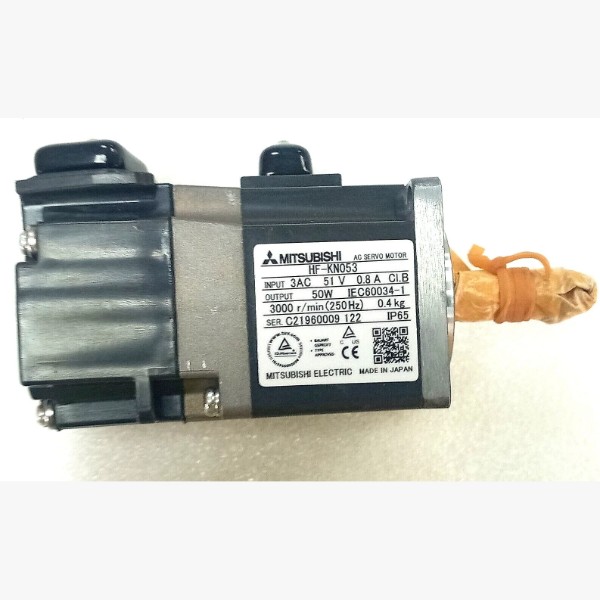

The Mitsubishi HF‑KN053 is a compact and efficient AC brushless servo motor from the MELSERVO JN series. Delivering 50 W (0.05 kW) output power, it’s designed for precision motion control in automated equipment, robotics, and CNC machinery. With a nominal speed of 3,000 rpm (up to 4,500 rpm max), it ensures smooth and reliable performance for varied industrial applications.

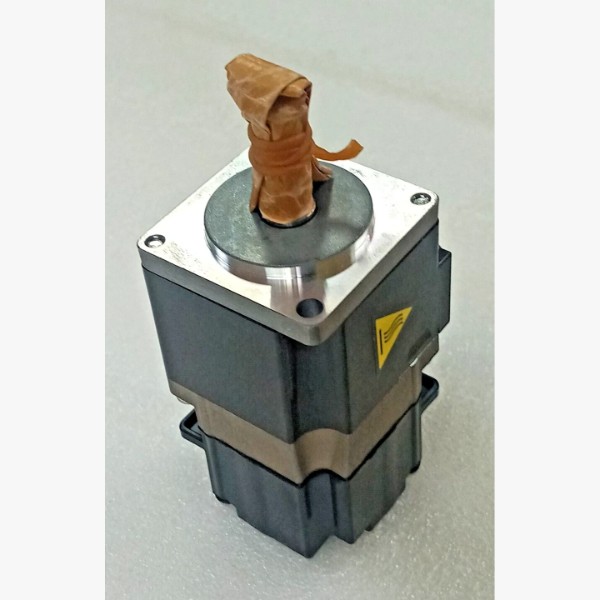

This motor features a straight shaft design, built-in incremental encoder with 131,072 pulses per revolution (equivalent to 17-bit resolution), and it runs on a 200 V AC power supply. Operating current is around 0.9 A, with a peak torque of 0.48 Nm, making it ideal for light-duty but highly accurate operations.
Built to last, the HF‑KN053 is IP65-rated for dust and splash resistance, and operates safely within 0–40 °C ambient conditions. Its low-inertia construction adds nimbleness to motion control, while natural cooling keeps maintenance minimal. Backed by Mitsubishi quality and compatible with JN-series servo amplifiers, this motor offers long-lasting reliability and precise control.
Key Features
- Power Output: 50 W (0.05 kW), suitable for light to medium tasks
- Speed: 3,000 rpm nominal (up to 4,500 rpm max)
- Encoder Resolution: 131,072 ppr (17-bit) for high accuracy
- Torque: 0.16 Nm nominal, 0.48 Nm peak
- Current Draw: 0.9 A nominal, 2.7 A max
- Power Supply: 200 V AC three-phase
At Mercury Automations, we offer only genuine and tested components. Your order for this part includes safe packaging and a 30-day warranty covering technical issues.
